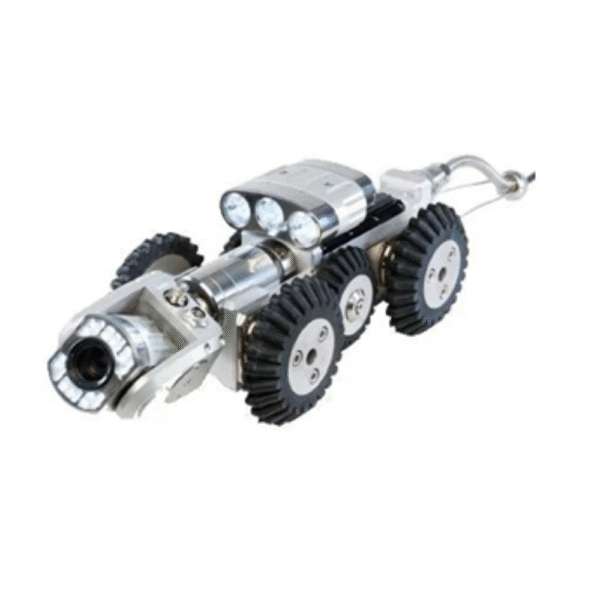

- Three crawler sizes available for pipes ranging from 100 mm to 1500 mm (4” to 60”)
- Modular design with aluminium or stainless steel construction
- Waterproof up to 10 m or 1 bar (32.8 ft. or 14.5 psi)
- Optional handheld control pendant of the 19” control unit version for inspection vehicles
- Transmitter for location of Rovver crawlers in pipes
- Freewheel clutch and optional BackEye camera facilitates retrieval, avoiding cable jams
- Optical sensor alerts in case of decrease in pressure
- Inclinometer for measuring grade and incline
- Distance measurement is displayed at the cable reel (RA200) and in monitor
Camera
- Camera pans 2x 135° and tilts 2x 175°
- Autofocus colour camera with zoom (10x optical, 12x digital) is available
- Elevator (ROVVER225) centres the camera in pipes up to 800 mm (32”)
- Shadowless LEDs
Cable
- Up to 200 m (656 ft.) cable is attached at the cable reel with a connector for easy change-out.
- The manual cable reel comprises of a built-in meter counter and an optional motorized winding support.
Monitor and Text Input
- Integral 10” LCD monitor
- Integral keyboard for text and graphical entries
- Multilingual multicolour text generator with 25 lines per page
- Memory stores five pages of text and up to 240 shortcut keys
Power
- Power supply adjusts to accommodate cable of varying lengths
- Entire system draws no more than 1000 W and accepts 115 – 230 Vac
